Giles42 Parcellation

In osl-dynamics, this parcellation file is named atlas-Giles_nparc-42_space-MNI_res-8x8x8.nii.gz, however, this parcellation file was previously named fmri_d100_parcellation_with_3PCC_ips_reduced_2mm_ss5mm_ds8mm_adj.nii.gz (both names will work).

This is a modified version of the original Giles parcellation to include the PCC plus 2 other parcels near it.

This parcellation was used in Vidaurre et al. (2018).

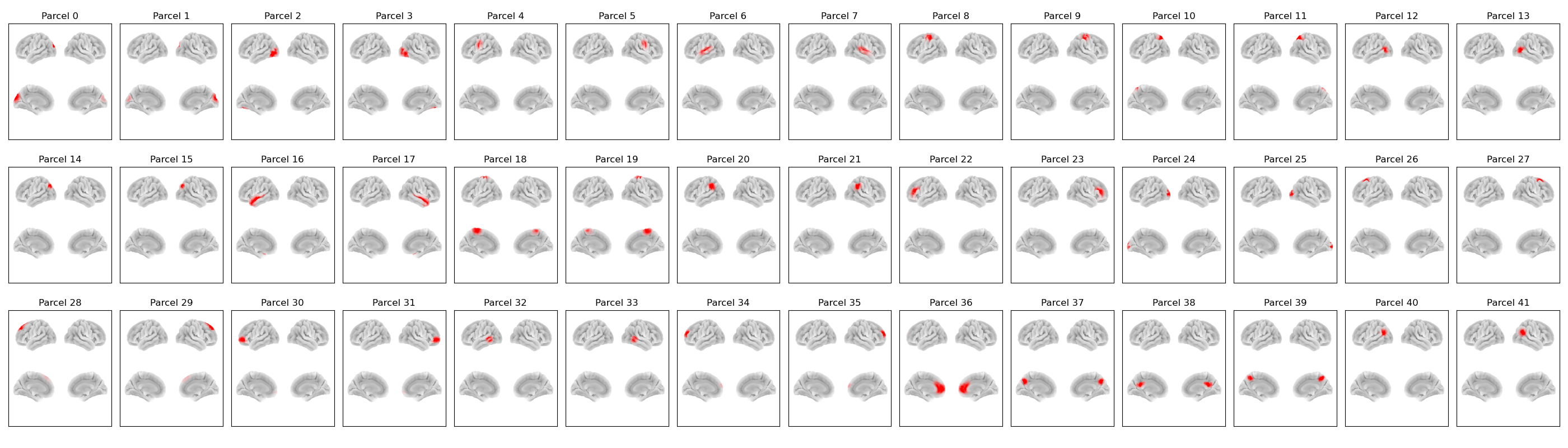

Parcels

Labels and MNI coordinates:

Index	Parcel	Hemisphere	X	Y	Z
0	Primary / Early Visual Cortex (dorsal)	left	-10.0	-87.4	23.3
1	Primary / Early Visual Cortex (dorsal)	right	10.2	-86.7	23.2
2	Ventral Visual / Fusiform	left	-37.4	-76.7	-5.0
3	Ventral Visual / Fusiform	right	37.4	-76.7	-5.0
4	Inferior Frontal Cortex (ventrolateral / IFG)	left	-53.0	-9.8	29.4
5	Inferior Frontal Cortex (ventrolateral / IFG)	right	53.7	-9.8	29.4
6	Lateral / Inferior Temporal Cortex	left	-53.8	-22.1	6.3
7	Lateral / Inferior Temporal Cortex	right	54.8	-22.4	6.5
8	Superior Parietal / Dorsal Parietal	left	-38.0	-26.3	56.7
9	Superior Parietal / Dorsal Parietal	right	38.0	-26.1	57.0
10	Precuneus / Superior Medial Parietal	left	-23.1	-60.8	53.6
11	Precuneus / Superior Medial Parietal	right	23.2	-60.5	53.6
12	Lateral Occipital Cortex	left	-47.2	-66.9	9.1
13	Lateral Occipital Cortex	right	46.8	-67.0	9.0
14	Intraparietal / Temporal-Parieto-Occipital junction (TPOJ)	left	-36.4	-74.5	37.4
15	Intraparietal / Temporal-Parieto-Occipital junction (TPOJ)	right	36.5	-74.2	37.6
16	Anterior Ventral Temporal / Temporal Pole	left	-50.7	-5.5	-16.6
17	Anterior Ventral Temporal / Temporal Pole	right	51.0	-5.1	-16.8
18	Supplementary Motor Area / Medial Motor	left	-10.7	-29.1	64.6
19	Supplementary Motor Area / Medial Motor	right	10.9	-29.2	64.9
20	Inferior Parietal (angular / supramarginal)	left	-55.6	-47.0	33.6
21	Inferior Parietal (angular / supramarginal)	right	55.8	-46.9	33.7
22	Ventrolateral PFC / Inferior Frontal (mid-lateral)	left	-42.4	29.5	11.9
23	Ventrolateral PFC / Inferior Frontal (mid-lateral)	right	42.8	29.9	12.0
24	Occipital pole / Primary Visual Cortex (ventral)	left	-19.9	-94.4	6.5
25	Occipital pole / Primary Visual Cortex (ventral)	right	20.9	-93.6	6.6
26	Dorsomedial / Superior Frontal (dorsomedial PFC)	left	-22.9	10.0	56.1
27	Dorsomedial / Superior Frontal (dorsomedial PFC)	right	23.0	10.0	56.1
28	Superior Dorsolateral Prefrontal Cortex (dlPFC / SFG)	left	-14.7	36.9	46.9
29	Superior Dorsolateral Prefrontal Cortex (dlPFC / SFG)	right	14.6	37.4	46.7
30	Orbital / Polar Frontal Cortex	left	-31.9	52.2	-4.9
31	Orbital / Polar Frontal Cortex	right	32.7	51.9	-5.1
32	Temporo-parietal junction / posterior STS	left	-57.7	-47.6	-1.4
33	Temporo-parietal junction / posterior STS	right	58.3	-47.3	-1.3
34	Medial Prefrontal / Anterior Cingulate	left	-20.8	54.7	19.8
35	Medial Prefrontal / Anterior Cingulate	right	20.9	55.0	19.8
36	Anterior Cingulate / Medial Prefrontal (midline)	midline	0.1	44.7	10.5
37	Midline Precuneus / Posterior Cingulate	midline	1.4	-67.2	36.1
38	Midline Posterior Cingulate / posterior medial cortex	midline	1.1	-48.6	23.8
39	Midline Superior Precuneus / dorsal medial parietal	midline	0.9	-55.1	49.0
40	Posterior Cingulate / Posterior Medial Cortex	left	-44.7	-59.3	23.7
41	Posterior Cingulate / Posterior Medial Cortex	right	47.4	-58.7	23.7

Example Code

Example code for plotting with this parcellation:

from osl_dynamics.analysis import power

power.save(
    ...,
    mask_file="MNI152_T1_8mm_brain.nii.gz",
    parcellation_file="atlas-Giles_nparc-42_space-MNI_res-8x8x8.nii.gz",
    filename="map_.png",
)
