Giles38 Parcellation#
In osl-dynamics, this parcellation file is named atlas-Giles_nparc-38_space-MNI_res-8x8x8.nii.gz, however, this parcellation file was previously named fmri_d100_parcellation_with_PCC_reduced_2mm_ss5mm_ds8mm.nii.gz (both names will work).
This is the original parcellation created by Giles Colclough based on applying ICA to fMRI data from 100 subjects.

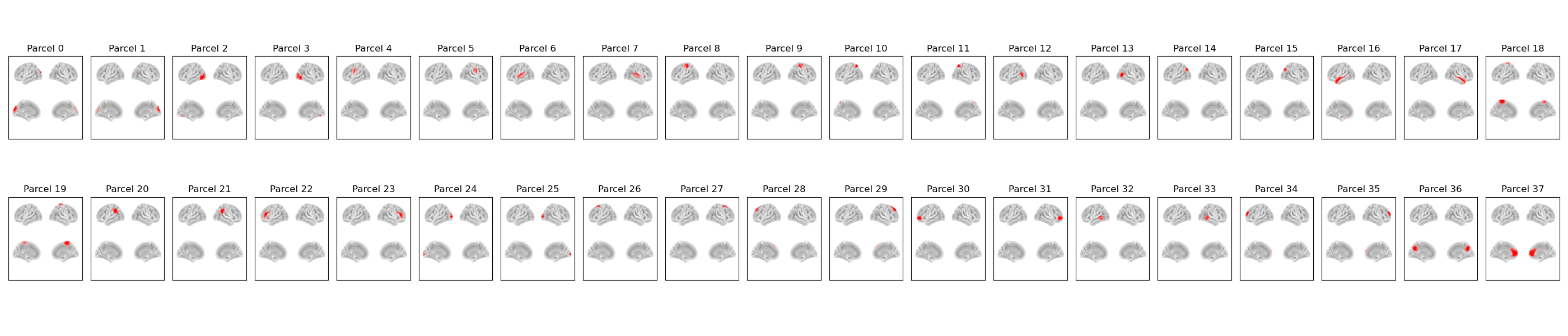

Parcels#
Labels and MNI coordinates:
Index |
Parcel |
Hemisphere |
X |
Y |
Z |
|---|---|---|---|---|---|
0 |
Primary / Early Visual Cortex (dorsal) |
left |
-10.0 |
-87.4 |
23.3 |
1 |
Primary / Early Visual Cortex (dorsal) |
right |
10.2 |
-86.7 |
23.2 |
2 |
Ventral Visual / Fusiform |
left |
-37.4 |
-76.7 |
-5.0 |
3 |
Ventral Visual / Fusiform |
right |
37.4 |
-76.7 |
-5.0 |
4 |
Inferior Frontal Cortex (ventrolateral) |
left |
-53.0 |
-9.8 |
29.4 |
5 |
Inferior Frontal Cortex (ventrolateral) |
right |
53.7 |
-9.8 |
29.4 |
6 |
Lateral / Inferior Temporal Cortex |
left |
-53.8 |
-22.1 |
6.3 |
7 |
Lateral / Inferior Temporal Cortex |
right |
54.8 |
-22.4 |
6.5 |
8 |
Superior Parietal / Dorsal Parietal |
left |
-38.0 |
-26.3 |
56.7 |
9 |
Superior Parietal / Dorsal Parietal |
right |
38.0 |
-26.1 |
57.0 |
10 |
Precuneus / Superior Medial Parietal |
left |
-23.1 |
-60.8 |
53.6 |
11 |
Precuneus / Superior Medial Parietal |
right |
23.2 |
-60.5 |
53.6 |
12 |
Lateral Occipital Cortex |
left |
-47.2 |
-66.9 |
9.1 |
13 |
Lateral Occipital Cortex |
right |
46.8 |
-67.0 |
9.0 |
14 |
Intraparietal / Temporal-Parieto-Occipital junction |
left |
-36.4 |
-74.5 |
37.4 |
15 |
Intraparietal / Temporal-Parieto-Occipital junction |
right |
36.5 |
-74.2 |
37.6 |
16 |
Anterior Ventral Temporal / Temporal Pole |
left |
-50.7 |
-5.5 |
-16.6 |
17 |
Anterior Ventral Temporal / Temporal Pole |
right |
51.0 |
-5.1 |
-16.8 |
18 |
Supplementary Motor Area / Medial Motor |
left |
-10.7 |
-29.1 |
64.6 |
19 |
Supplementary Motor Area / Medial Motor |
right |
10.9 |
-29.2 |
64.9 |
20 |
Inferior Parietal (angular / supramarginal) |
left |
-55.6 |
-47.0 |
33.6 |
21 |
Inferior Parietal (angular / supramarginal) |
right |
55.8 |
-46.9 |
33.7 |
22 |
Inferior Frontal / Ventrolateral PFC |
left |
-42.4 |
29.5 |
11.9 |
23 |
Inferior Frontal / Ventrolateral PFC |
right |
42.8 |
29.9 |
12.0 |
24 |
Occipital pole / Primary Visual Cortex (ventral) |
left |
-19.9 |
-94.4 |
6.5 |
25 |
Occipital pole / Primary Visual Cortex (ventral) |
right |
20.9 |
-93.6 |
6.6 |
26 |
Superior Frontal / Dorsomedial PFC |
left |
-22.9 |
10.0 |
56.1 |
27 |
Superior Frontal / Dorsomedial PFC |
right |
23.0 |
10.0 |
56.1 |
28 |
Superior Dorsolateral Prefrontal Cortex |
left |
-14.7 |
36.9 |
46.9 |
29 |
Superior Dorsolateral Prefrontal Cortex |
right |
14.6 |
37.4 |
46.7 |
30 |
Orbital / Polar Frontal Cortex |
left |
-31.9 |
52.2 |
-4.9 |
31 |
Orbital / Polar Frontal Cortex |
right |
32.7 |
51.9 |
-5.1 |
32 |
Temporo-parietal junction / posterior STS |
left |
-57.7 |
-47.6 |
-1.4 |
33 |
Temporo-parietal junction / posterior STS |
right |
58.3 |
-47.3 |
-1.3 |
34 |
Medial Prefrontal / Anterior Cingulate |
left |
-20.8 |
54.7 |
19.8 |
35 |
Medial Prefrontal / Anterior Cingulate |
right |
20.9 |
55.0 |
19.8 |
36 |
Posterior Cingulate / Midline Precuneus |
midline |
0.5 |
-60.4 |
33.8 |
37 |
Anterior Cingulate / Medial Prefrontal (midline) |
midline |
0.1 |
44.7 |
10.5 |
Example Code#
Example code for plotting with this parcellation:
from osl_dynamics.analysis import power
power.save(
...,
mask_file="MNI152_T1_8mm_brain.nii.gz",
parcellation_file="atlas-Giles_nparc-38_space-MNI_res-8x8x8.nii.gz",
filename="map_.png",
)
