Giles39 Parcellation

In osl-dynamics, this parcellation file is named atlas-Giles_nparc-39_space-MNI_res-8x8x8.nii.gz, however, this parcellation file was previously named fmri_d100_parcellation_with_PCC_tighterMay15_v2_8mm.nii.gz (both names will work).

This is a modified version of the original Giles parcellation to include the PCC.

This parcellation was used in Quinn et al. (2018).

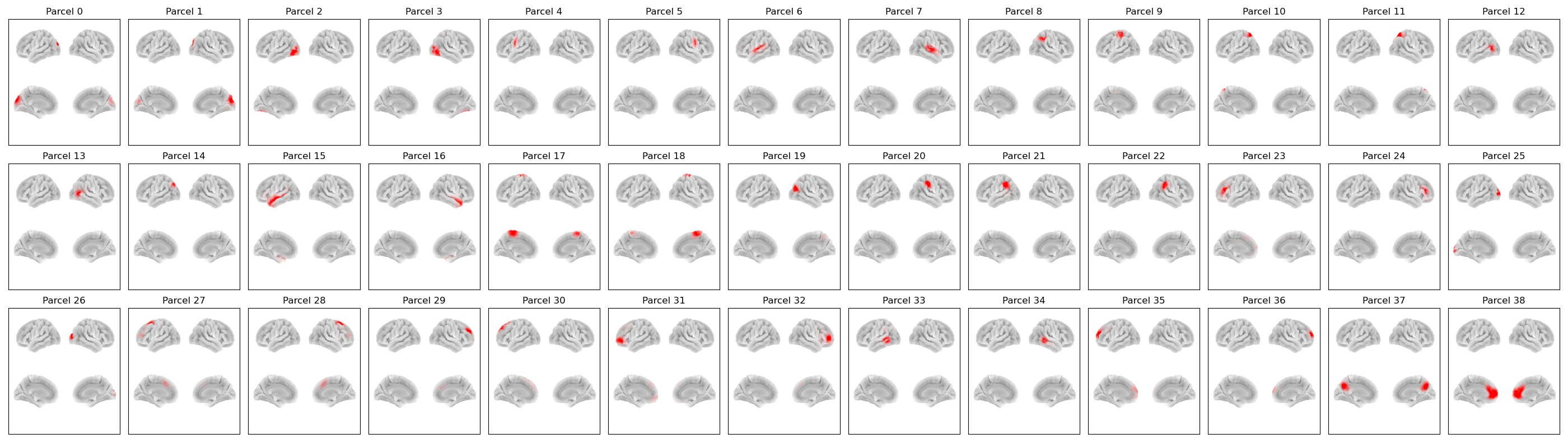

Parcels

Labels and MNI coordinates:

Index	Parcel	Hemisphere	X	Y	Z
0	Primary / Early Visual Cortex (dorsal)	left	-12.1	-84.7	19.0
1	Primary / Early Visual Cortex (dorsal)	right	16.3	-81.5	20.5
2	Ventral Visual / Fusiform	left	-35.0	-72.7	1.2
3	Ventral Visual / Fusiform / Lateral Occipital	right	34.4	-65.6	0.9
4	Inferior Frontal / Ventrolateral PFC	left	-51.2	-11.2	32.2
5	Inferior Frontal / Ventrolateral PFC	right	51.6	-9.2	31.7
6	Lateral / Inferior Temporal Cortex	left	-54.1	-21.8	5.7
7	Lateral / Inferior Temporal Cortex	right	56.1	-17.3	4.5
8	Posterior Superior Temporal / TPJ-ish (right-dominant)	right	48.4	-50.7	45.1
9	Superior Parietal / Dorsal Parietal	left	-34.0	-25.5	57.9
10	Precuneus / Superior Medial Parietal	left	-25.7	-60.3	49.8
11	Precuneus / Superior Medial Parietal	right	26.5	-59.0	52.0
12	Lateral Occipital / Posterior Temporal	left	-47.3	-63.0	3.9
13	Lateral Occipital / Posterior Temporal	right	46.3	-58.5	3.6
14	Intraparietal / Temporal-Parieto-Occipital junction (TPOJ)	left	-33.1	-73.9	40.4
15	Anterior Ventral Temporal / Temporal Pole	left	-46.1	-7.4	-13.2
16	Anterior Ventral Temporal / Temporal Pole	right	42.5	-1.3	-20.2
17	Supplementary Motor Area / Medial Motor	left	-13.5	-26.7	63.7
18	Supplementary Motor Area / Medial Motor	right	15.0	-25.7	64.4
19	Posterior Intraparietal / dorsal parietal	right	32.6	-69.2	31.7
20	Inferior Parietal / Angular / Supramarginal (right)	right	57.8	-31.5	39.7
21	Inferior Parietal / Angular / Supramarginal (left)	left	-56.0	-47.7	27.8
22	Inferior Parietal / Angular / Supramarginal (right)	right	57.3	-41.5	30.0
23	Ventrolateral PFC / Inferior Frontal	left	-31.2	27.1	13.7
24	Ventrolateral PFC / Inferior Frontal	right	42.7	28.1	8.0
25	Occipital pole / Primary Visual Cortex (ventral)	left	-20.8	-93.0	6.3
26	Occipital pole / Primary Visual Cortex (ventral)	right	22.9	-90.0	9.2
27	Lateral Temporal / Middle Temporal (anterior)	left	-23.4	19.2	43.7
28	Lateral Temporal / Middle Temporal (anterior)	right	25.6	21.0	39.3
29	Dorsolateral PFC / Superior Frontal	right	22.4	41.7	29.0
30	Dorsolateral PFC / Superior Frontal	left	-15.4	37.1	43.3
31	Medial / Orbital frontal cluster	left	-28.4	43.6	5.2
32	Lateral frontal cluster	right	31.0	30.2	6.2
33	Inferior Parietal / posterior temporal (left)	left	-53.4	-49.9	11.1
34	Inferior Parietal / posterior temporal (right)	right	60.6	-39.8	-2.7
35	Dorsomedial / medial prefrontal	left	-19.2	48.1	22.4
36	Dorsomedial / medial prefrontal	right	21.9	52.5	21.5
37	Posterior Cingulate / Midline Precuneus	midline	0.5	-60.3	34.1
38	Anterior Cingulate / Medial Prefrontal (midline)	midline	0.1	44.3	10.4

Example Code

Example code for plotting with this parcellation:

from osl_dynamics.analysis import power

power.save(
    ...,
    mask_file="MNI152_T1_8mm_brain.nii.gz",
    parcellation_file="atlas-Giles_nparc-39_space-MNI_res-8x8x8.nii.gz",
    filename="map_.png",
)
