DK54 Parcellation

This is a reduced version of the original DK68 parcellation.

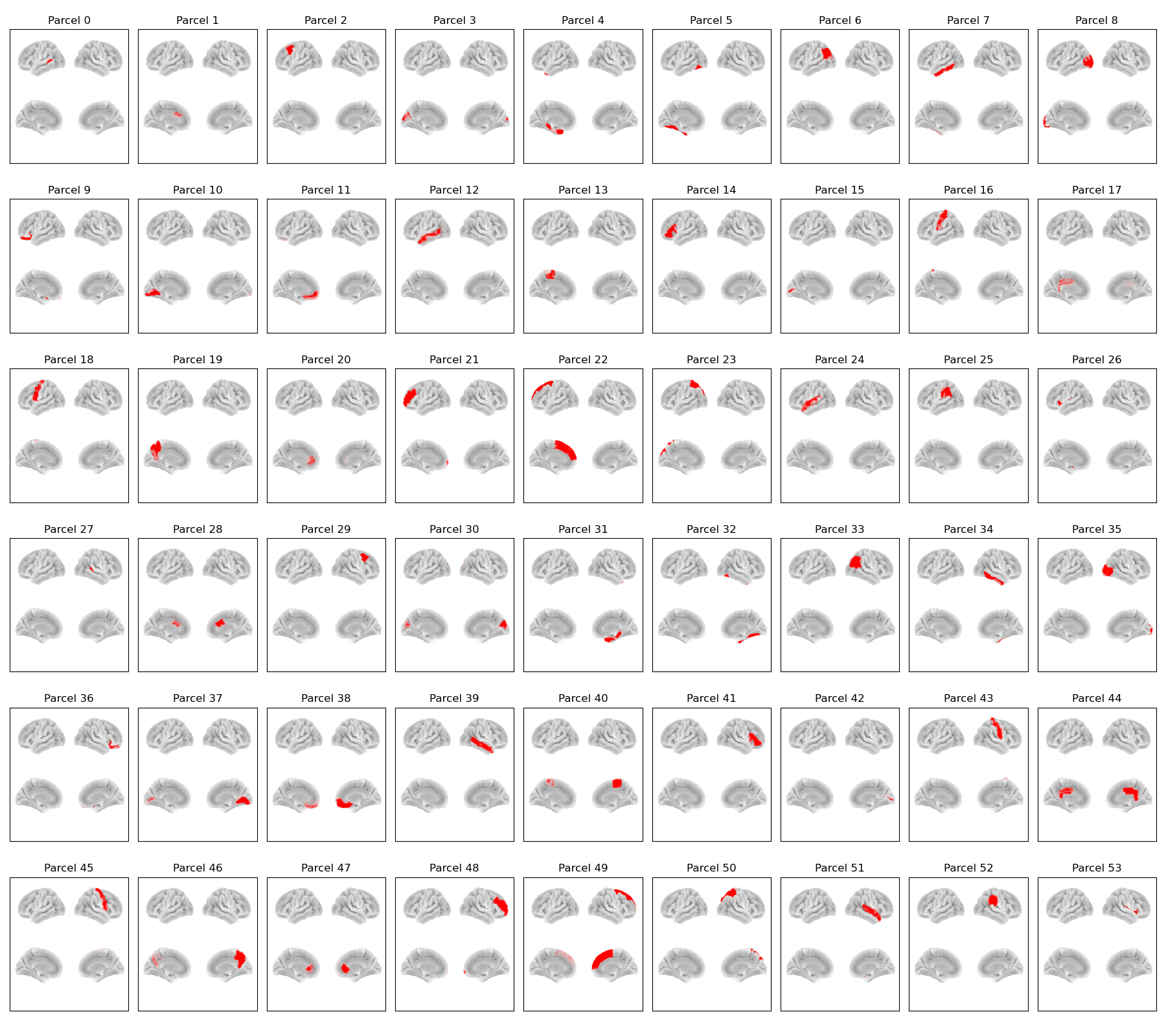

Parcels

Labels and MNI coordinates:

Index	Parcel	Hemisphere	X	Y	Z
0	Banks of Superior Temporal Sulcus	left	-50.3	-44.4	6.4
1	Caudal Anterior Cingulate	left	-9.1	16.2	25.2
2	Caudal Middle Frontal	left	-34.7	10.9	44.0
3	Cuneus	left	-6.0	-83.7	17.7
4	Entorhinal + Parahippocampal + Temporal Pole	left	-24.6	-5.5	-29.7
5	Fusiform Gyrus	left	-33.2	-43.9	-21.5
6	Inferior Parietal Cortex	left	-40.4	-66.0	30.2
7	Inferior Temporal Cortex	left	-50.4	-35.1	-22.2
8	Lateral Occipital Cortex	left	-28.3	-89.0	1.1
9	Lateral Orbitofrontal Cortex	left	-23.6	30.7	-15.5
10	Lingual Gyrus	left	-13.8	-67.3	-5.1
11	Medial Orbitofrontal Cortex	left	-7.6	38.0	-14.8
12	Middle Temporal Cortex	left	-56.9	-27.7	-11.9
13	Paracentral Lobule	left	-9.6	-27.5	54.5
14	Inferior Frontal Gyrus (Pars Opercularis/Orbitalis/Triangularis)	left	-43.6	26.6	5.2
15	Pericalcarine Cortex	left	-15.1	-79.7	6.3
16	Postcentral Gyrus	left	-41.6	-25.0	47.6
17	Posterior + Isthmus Cingulate	left	-8.9	-27.1	28.6
18	Precentral Gyrus	left	-38.6	-8.7	41.2
19	Precuneus	left	-11.6	-58.4	34.7
20	Rostral Anterior Cingulate	left	-8.0	36.5	3.0
21	Rostral Middle Frontal + Frontal Pole	left	-29.7	46.3	15.2
22	Superior Frontal Cortex	left	-12.4	25.7	43.9
23	Superior Parietal Cortex	left	-21.5	-62.9	48.3
24	Superior + Transverse Temporal Cortex	left	-49.8	-13.5	-2.6
25	Supramarginal Gyrus	left	-52.2	-36.9	33.1
26	Insula	left	-33.7	-4.0	3.4
27	Banks of Superior Temporal Sulcus	right	49.3	-40.9	7.3
28	Caudal Anterior Cingulate	right	6.0	18.4	25.6
29	Caudal Middle Frontal	right	35.9	10.8	44.4
30	Cuneus	right	6.6	-80.9	21.1
31	Entorhinal + Parahippocampal + Temporal Pole	right	24.9	-7.1	-28.1
32	Fusiform Gyrus	right	35.6	-41.6	-22.1
33	Inferior Parietal Cortex	right	44.1	-60.8	30.3
34	Inferior Temporal Cortex	right	51.2	-32.1	-23.3
35	Lateral Occipital Cortex	right	31.7	-85.4	1.4
36	Lateral Orbitofrontal Cortex	right	25.1	31.6	-14.5
37	Lingual Gyrus	right	14.8	-65.5	-4.4
38	Medial Orbitofrontal Cortex	right	5.8	36.7	-14.7
39	Middle Temporal Cortex	right	58.3	-26.1	-12.4
40	Paracentral Lobule	right	8.6	-25.5	55.3
41	Inferior Frontal Gyrus (Pars Opercularis/Orbitalis/Triangularis)	right	46.8	27.4	5.0
42	Pericalcarine Cortex	right	15.2	-78.5	7.5
43	Postcentral Gyrus	right	44.5	-19.1	43.1
44	Posterior + Isthmus Cingulate	right	7.0	-27.7	26.5
45	Precentral Gyrus	right	38.5	-8.9	44.6
46	Precuneus	right	10.8	-56.9	36.1
47	Rostral Anterior Cingulate	right	6.0	33.2	3.6
48	Rostral Middle Frontal + Frontal Pole	right	31.3	46.2	16.2
49	Superior Frontal Cortex	right	11.5	26.8	43.4
50	Superior Parietal Cortex	right	24.6	-59.1	51.3
51	Superior + Transverse Temporal Cortex	right	52.5	-7.8	-6.0
52	Supramarginal Gyrus	right	52.6	-31.8	31.9
53	Insula	right	35.1	-1.0	5.0

Example Code

Example code for plotting with this parcellation:

from osl_dynamics.analysis import power

power.save(
    ...,
    mask_file="MNI152_T1_8mm_brain.nii.gz",
    parcellation_file="atlas-DK_nparc-54_space-MNI_res-8x8x8.nii.gz",
    filename="map_.png",
)

Reference

If you use the this parcellation, please cite:

Gohil, C., Kohl, O., & Woolrich, M. (2026). DK54: a reduced version of the Desikan-Killiany parcellation [Data set]. Zenodo. https://doi.org/10.5281/zenodo.18599127
