DK68 Parcellation

This parcellation contains a volumetric version of the Desikan-Killiany (DK) atlas, which is the default atlas used in FreeSurfer.

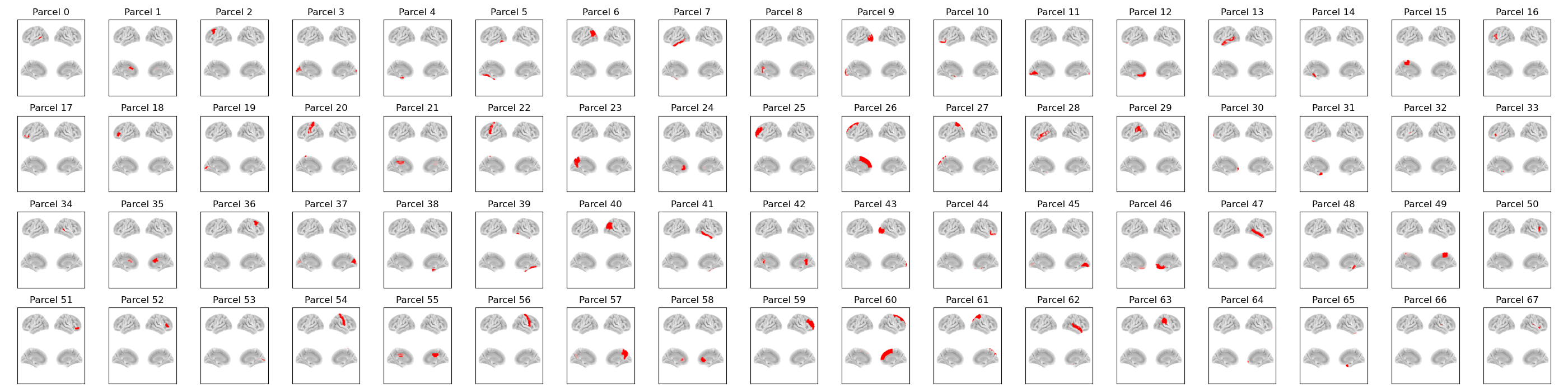

Parcels

Labels and MNI coordinates:

Index	Parcel	Hemisphere	X	Y	Z
0	Banks of Superior Temporal Sulcus	left	-50.3	-44.4	6.4
1	Caudal Anterior Cingulate	left	-9.1	16.2	25.2
2	Caudal Middle Frontal	left	-34.7	10.9	44.0
3	Cuneus	left	-6.0	-83.7	17.7
4	Entorhinal Cortex	left	-24.3	-4.9	-32.0
5	Fusiform Gyrus	left	-33.2	-43.9	-21.5
6	Inferior Parietal Cortex	left	-40.4	-66.0	30.2
7	Inferior Temporal Cortex	left	-50.4	-35.1	-22.2
8	Isthmus Cingulate	left	-9.7	-42.3	20.3
9	Lateral Occipital Cortex	left	-28.3	-89.0	1.1
10	Lateral Orbitofrontal Cortex	left	-23.6	30.7	-15.5
11	Lingual Gyrus	left	-13.8	-67.3	-5.1
12	Medial Orbitofrontal Cortex	left	-7.6	38.0	-14.8
13	Middle Temporal Cortex	left	-56.9	-27.7	-11.9
14	Parahippocampal Gyrus	left	-19.6	-30.8	-18.4
15	Paracentral Lobule	left	-9.6	-27.5	54.5
16	Pars Opercularis	left	-45.7	17.7	13.5
17	Pars Orbitalis	left	-42.0	38.0	-12.8
18	Pars Triangularis	left	-41.8	32.1	3.4
19	Pericalcarine Cortex	left	-15.1	-79.7	6.3
20	Postcentral Gyrus	left	-41.6	-25.0	47.6
21	Posterior Cingulate Cortex	left	-8.4	-17.2	34.0
22	Precentral Gyrus	left	-38.6	-8.7	41.2
23	Precuneus	left	-11.6	-58.4	34.7
24	Rostral Anterior Cingulate	left	-8.0	36.5	3.0
25	Rostral Middle Frontal	left	-30.9	45.2	16.4
26	Superior Frontal Cortex	left	-12.4	25.7	43.9
27	Superior Parietal Cortex	left	-21.5	-62.9	48.3
28	Superior Temporal Cortex	left	-50.7	-12.3	-3.9
29	Supramarginal Gyrus	left	-52.2	-36.9	33.1
30	Frontal Pole	left	-9.2	66.0	-6.4
31	Temporal Pole	left	-28.3	12.3	-36.6
32	Transverse Temporal Cortex	left	-42.6	-23.1	8.0
33	Insula	left	-33.7	-4.0	3.4
34	Banks of Superior Temporal Sulcus	right	49.3	-40.9	7.3
35	Caudal Anterior Cingulate	right	6.0	18.4	25.6
36	Caudal Middle Frontal	right	35.9	10.8	44.4
37	Cuneus	right	6.6	-80.9	21.1
38	Entorhinal Cortex	right	23.1	-3.8	-33.5
39	Fusiform Gyrus	right	35.6	-41.6	-22.1
40	Inferior Parietal Cortex	right	44.1	-60.8	30.3
41	Inferior Temporal Cortex	right	51.2	-32.1	-23.3
42	Isthmus Cingulate	right	7.2	-41.6	17.6
43	Lateral Occipital Cortex	right	31.7	-85.4	1.4
44	Lateral Orbitofrontal Cortex	right	25.1	31.6	-14.5
45	Lingual Gyrus	right	14.8	-65.5	-4.4
46	Medial Orbitofrontal Cortex	right	5.8	36.7	-14.7
47	Middle Temporal Cortex	right	58.3	-26.1	-12.4
48	Parahippocampal Gyrus	right	21.7	-30.6	-16.6
49	Paracentral Lobule	right	8.6	-25.5	55.3
50	Pars Opercularis	right	47.6	14.9	14.3
51	Pars Orbitalis	right	44.3	41.4	-11.4
52	Pars Triangularis	right	47.7	31.7	5.7
53	Pericalcarine Cortex	right	15.2	-78.5	7.5
54	Postcentral Gyrus	right	44.5	-19.1	43.1
55	Posterior Cingulate Cortex	right	6.8	-16.6	33.6
56	Precentral Gyrus	right	38.5	-8.9	44.6
57	Precuneus	right	10.8	-56.9	36.1
58	Rostral Anterior Cingulate	right	6.0	33.2	3.6
59	Rostral Middle Frontal	right	32.3	45.4	17.3
60	Superior Frontal Cortex	right	11.5	26.8	43.4
61	Superior Parietal Cortex	right	24.6	-59.1	51.3
62	Superior Temporal Cortex	right	52.9	-6.9	-7.0
63	Supramarginal Gyrus	right	52.6	-31.8	31.9
64	Frontal Pole	right	6.0	66.0	-12.0
65	Temporal Pole	right	29.7	13.7	-35.1
66	Transverse Temporal Cortex	right	46.0	-22.0	8.0
67	Insula	right	35.1	-1.0	5.0

Example Code

Example code for plotting with this parcellation:

from osl_dynamics.analysis import power

power.save(
    ...,
    mask_file="MNI152_T1_8mm_brain.nii.gz",
    parcellation_file="atlas-DK_nparc-68_space-MNI_res-8x8x8.nii.gz",
    filename="map_.png",
)
